Clutch Direct are proud to offer 4Terrain clutch upgrades for your 4x4. Increase the toque handling capability of your Clutch Direct upgraded 4x4. Perfect for tuned and enhanced 4x4's, or even those who just want to push the limits off-road
PRODUCT DESCRIPTION
4TU2354N
|
MAKE
|
MODEL
|
MODEL ID
|
ENGINE SIZE
|
ENGINE CODE
|
YEAR
|
|
Toyota
|
Land Cruiser
|
HDJ100
|
4.2 Ltr TDi
|
1HD-FTE, 161kW, 5 Speed
|
10/00-10/07
|
|
Toyota
|
Land Cruiser
|
HDJ105
|
4.2 Ltr TDi
|
1HD-FTE, 161kW, 5 Speed
|
1/98-On
|
|
The 100 series was first popularized in 1998, a good buy for anyone wanting to own an efficient and practical off-road SUV with some 1990s flair, and while they've started to go back up in price in recent years, it's still possible to find one that offers good value. Larger overall than earlier models the 100 series is reliable, has excellent off-road performance, and is good on fuel (for the size of the car). Also, it can carry 8 people comfortably and is perfect for heavy towing with the turbo-diesel engine.
4WD Clutch Kit - Ultimate Heavy-duty Upgrade
|
|
It's not uncommon for 100 Series owners to modify their Landcruiser's for more extreme off-road driving and when these modifications are done it's important to also upgrade the clutch system.
For these enthusiasts, a clutch modification that can handle greater torque while also increasing heat dissipation and providing a superb pedal feel is essential. Clutch Industries has been engineering different options for LC100's for decades, the most popular product being in the 4Terrain Ultimate brand.
Featuring:
- Chrome Vanadium Diaphragm for maximum durability.
- Cl’s ER2 grooved pressure plate patented technology for greater torque capacity and increased heat dispersion.
- SG Iron pressure plate with yield strength 300% higher than standard.
- Dual friction clutch plate with low wear, high coefficient of friction aramid buttons.

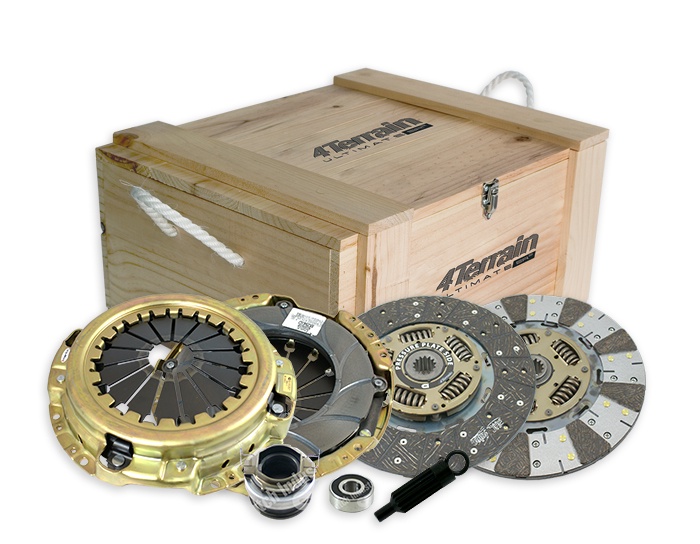

This kit includes:
- Patented ER2 High Torque SGI Cover Assembly
- Aramid Dual Friction Material Heavy Duty Clutch Plate
- Release Bearing
- Spigot Bearing
- Aligning tool
This clutch kit comes with a parts and labour warranty period of 3 years or 50,000 kilometers (whichever occurs first).
Clutch Plate Dimensions: 300mm x 14T x 32.4mm |
|
|
|
FULL CLUTCH KIT RANGE
|
TORQUE CAPACITY
|
|
BRAND
|
DETAILS
|
PART NUMBER
|
PEAK
|
RATED
|
|
|
4X4 Ultimate Offroad Performance Clutch Kit
|
4TU2354N
|
914Nm
|
731Nm
|
 |
4X4 Offroad & Towing Clutch Kit
|
4T2354NHD
|
673Nm
|
841Nm
|
|
PATENTED 4TERRAIN OFF ROAD COVER ASSEMBLY
4x4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also have improved heat dissipation. 4Terrain cover assemblies are in themselves high clamp load covers providing increased clamping force as compared to standard product. Also featuring the ER2 grooved cover which increase torque capacity while also increase heat dissipation.
SPHEROIDAL GRAPHITE CASTINGS
Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.
BALANCED COVERS
To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.
4TERRAIN DUAL FRICTION CLUTCH PLATE
4Terrain Ultimate Clutch Kits feature a dual friction clutch plate. Organic material on the flywheel side is replaced with Aramid, the same material used in bulletproof vests, for improved fade resistance and increased torque capacity due to a higher coefficient of friction. 4Terrain Ultimate plates are the ultimate for your 4x4.
CI Heavy Duty, 4Terrain Heavy Duty & 4Terrain Ultimate Clutch Kits come with a 36 month warranty, or 50,000km's, whichever occurs first, from date of purchase. This includes (from date of purchase) parts and labour for a period of 2 years or 40,000 kilometres (whichever occurs first) and a further 12 months or 10,000 kilometres (whichever occurs first) parts only warranty). Warranty does not cover: A. Normal wear and tear, including wear and tear of any friction materials forming the surface between the clutch disk and pressure plate or used as a component of the product B. Any defect or damage caused by a collision or other accident C. Any defect or damage caused by the failure to store, handle, install, assemble, maintain or use the product in accordance with manufacturer instructions or specifications, including but not limited to: (a) modification of the product by the customer in any way; or (b) installation of the product in a vehicle that is not in full compliance with the instructions and specifications of the manufacturer of that vehicle D. Any defect or damage arising directly or indirectly as a result of racing or competing in the vehicle in which the product is installed E. Any defect or damage arising directly or indirectly as a result of the failure to use and install an appropriate scatter shield 6. We reserve the option to repair or replace products at no charge if found to be defective during the warranty period. 7. This warranty will be VOID automatically if in our reasonable opinion the product has been subject to any unreasonable use, misuse, negligence, fire, or accident; or the product has been modified, repaired or dismantled without the prior written authorization; or any part has been replaced with a non-approved part. We reserve the sole right to inspect, evaluate and test the purportedly defective product in any way deemed appropriate by Clutch Industries Pty Ltd, and then make the final decision as to whether the product in fact is faulty or defective in material or workmanship. This is our exclusive written warranty. We make no other express warranties, nor is anyone else authorized to make any express warranties on our behalf. 8. Upon discovering a purported defect that you believe is covered by this warranty, you must immediately (within 30 days) return the product to us, together with a detailed written description of the purported defect and proof of original purchase. 9. No warranty claim will be accepted under this warranty for incorrectly installed parts unless approved by Clutch Industries Pty Ltd under the Clutch Industries Pty Ltd “No fault” warranty provision, which may be withheld at the absolute discretion of Clutch Industries Pty Ltd. 10. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. WARNING: DO NOT USE ANY Clutch Industries Pty Ltd PRODUCT IN VEHICLES WHICH HAVE BEEN MODIFIED TO EXCEED THE MAXIMUM ENGINE RPM(S) BEYOND THAT WHICH WAS SPECIFIED BY THE ORIGINAL VEHICLE MANUFACTURER WITHOUT FIRST INSTALLING APPROPRIATE SAFETY EQUIPMENT, INCLUDING BUT NOT LIMITED TO TRANSMISSION GUARDS, AS SUCH USE MAY CAUSE THE PRODUCT TO EXPLODE UNEXPECTEDLY CAUSING SERIOUS INJURY AND/OR DEATH.
This kit includes : 4TERRAIN ER2 Heavy Duty Cover Assembly, 4Terrain Aramide Dual Friction, High Torque, Clutch Plate, Release bearing , Clutch Alignment Tool, Spigot Bearing
