Ford Focus (2015-2019) LZ Hatchback 2.3 RS AWD AWD Petrol 2.3L 4cyl 25 – Clutch Direct

Ford Focus (2015-2019) LZ Hatchback 2.3 RS AWD AWD Petrol 2.3L 4cyl 257kW YVDA Xtreme Performance Rigid Solid Ceramic Twin Plate Clutch Kit - Includes SMF & CSC, KFD23659-2E

Ford Focus (2015-2019) LZ Hatchback 2.3 RS AWD AWD Petrol 2.3L 4cyl 257kW YVDA Xtreme Performance Rigid Solid Ceramic Twin Plate Clutch Kit - Includes SMF & CSC, KFD23659-2E

Ford Focus (2015-2019) LZ Hatchback 2.3 RS AWD AWD Petrol 2.3L 4cyl 257kW YVDA Xtreme Performance Rigid Solid Ceramic Twin Plate Clutch Kit - Includes SMF & CSC, KFD23659-2E

Xtreme PerformanceSKU: KFD23659-2E

ENGINE:

SERIES:

$2,704.55
$2,704.55
$2,704.55
Sold out
Tax included.
Description

SKU: KFD23659-2E

Recommended for Track (Motorsport) focused cars who also occassionally used on the public roads.

The upgraded Twin Solid (Rigid) Ceramic range provides superior heat and torque capacity. These are designed for motorsport applications where response and torque capcity are the primary focus, with optimal performance the key measure of success. The discs also feature a sprung hub to reduce shock loading. Upgrade your driving experience with increased heat and torque capacity. Our cushioned ceramic range delivers optimized driveability with friction surface cushioning. Reduce shock loading thanks to its integrated sprung hub.

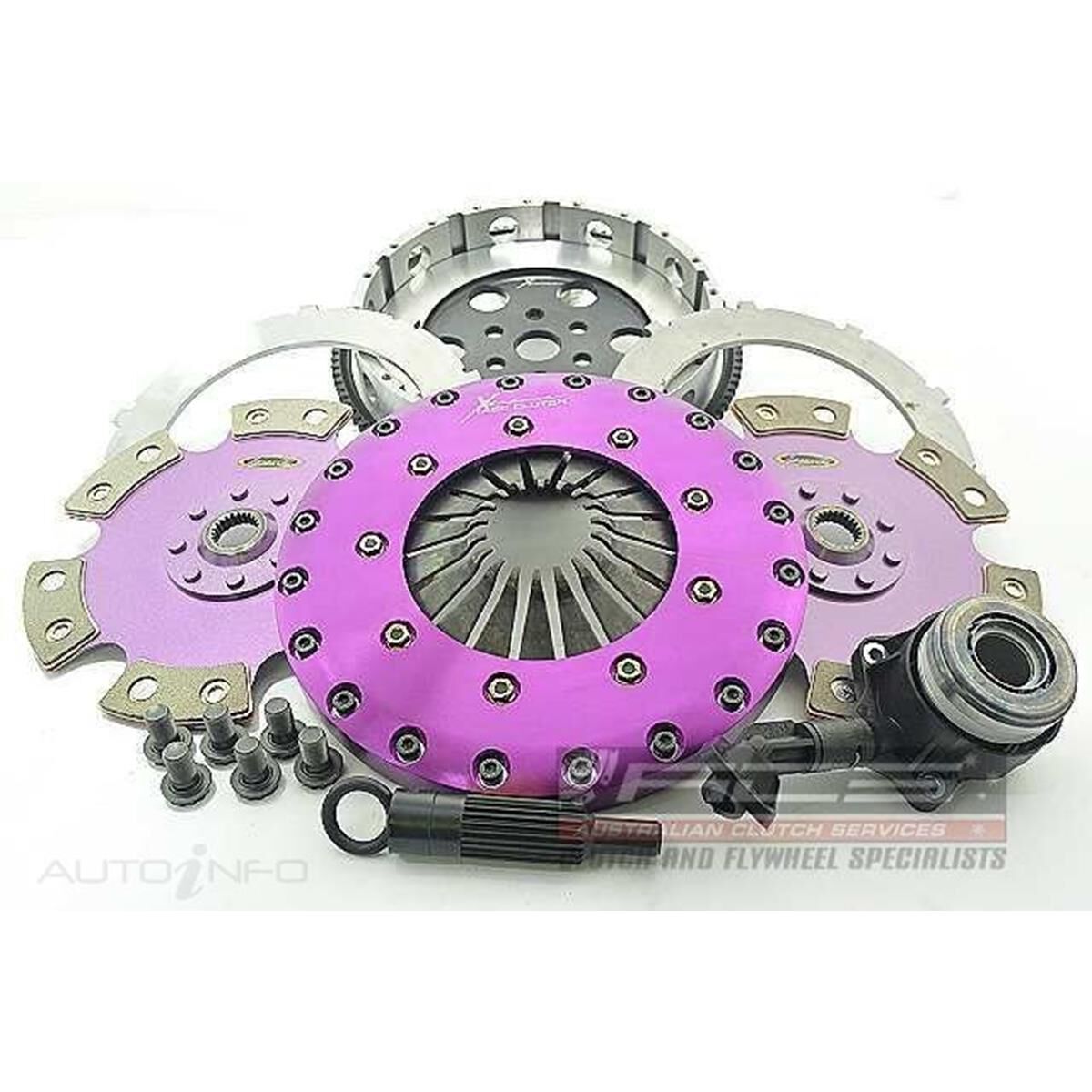

Please note, photos may be generic.

Xtreme Clutch

Experience the innovation and expertise of Xtreme Clutch, a leader in performance clutch technology.

With in-house testing and strong ties to motorsport, Xtreme have conducted extensive research and developed a wide range of materials and disc designs for optimal performance in high-performance and racing settings.

The name Xtreme Clutch is known for its commitment to excellence in high-performance.

Australian Clutch Services

The Clutch and Flywheel Specialists

Operating since 1988, Australian Clutch Services has become a household name in the nation as the top provider of new and remanufactured clutch components and systems.

With a purpose-built facility in Adelaide, ACS encompasses all sides of the industry, from Manufacturing to Research & Development. Here at Clutch Direct we then help you, the end customer, choose the right clutch and get it to you - FAST!

Quality Commitment

The quality and technical knowledge of ACS is a key focus, ensuring all customers receive a well-presented and superior product.

ACS continuously updates individual testing and cataloging of every clutch model, ensuring the best product for each vehicle, ready to go.

ACS's comprehensive clutch technical and application database, for each product range, is unmatched in the country.
Catering to all customer needs in the automotive, commercial, agricultural, forklift, marine, and industrial industries, making ACS the go-to experts for clutches and flywheels in Australia.

Proudly distributed by Clutch Direct.

Specifications
Recommended Use
Stage
Clamping Force % Increase
Clamp Load (kg)
Torque (Nm) Inc FOS
 1830
Torque (Nm / ftlbs) Inc FOS
Torque (ftlbs) Inc FOS
 1350

Disc Type
 Solid
Multiplate
 Twin
Friction Material
 Ceramic
Clutch Design
Clutch Disc Diameter (mm)
 230
Clutch Disc Spline Count
 23
Clutch Disc Spline Diameter (mm)
 26

Flywheel Included
 Single Mass
Flywheel Step (mm)
 3.8
Flywheel Bolt Torque
Flywheel Bolts Included
 Yes

Concentric Slave Cylinder Included
 Yes
Spigot Bush/Bearing Included
 Not Included
Aligning Tool Included
 Yes
Pressure Plate Bolts Included
 Yes
Spline Grease Included
 Yes

Weight
Weight (kg)
 14.5
Transport Weight (kg)
Self Adjusting

Note
Note 2
